The Next Generation Android Hi-Fi Music Player
Enjoy High Fidelity Music Like Never Before.

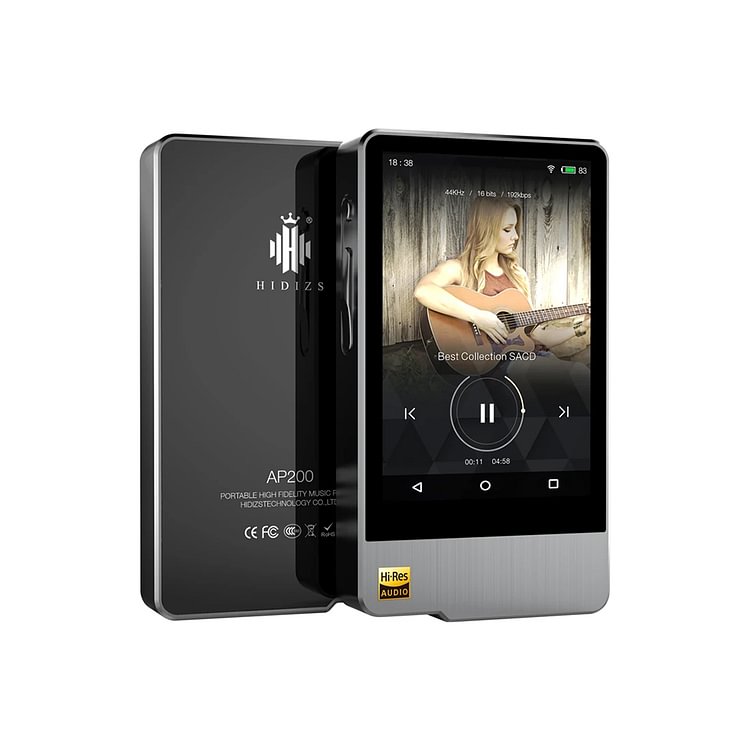

Hidizs AP200 Portable Hi-Res Music Player
Hidizs | Enjoy Music Like Never Before
Precision Engineered For Superior Sound
A Host Of Premium Components Have Been Specially Selected For Use In Our Circuit Boards, To Deliver The Best Portable Audio Experience.
Dual DACs For Excellent Sound
Features Dual flagship ESS ES9118C DAC chips for each channel (Left/Right). Perfect channel separation is achieved as the sound field reaches an unprecedentedly broad width, both in the vertical and horizontal planes.
Native DSD Supported
The AP200 supports most Hi-Res lossless formats, including FLAC, APE, WMA, WAV, ALAC, Apple LOSSLESS, DSF, and DSDIFF. Native support for DSD 64/128, PCM up to 384Khz/32bit, ISO DSD format
Dual Crystal Oscillators
Utilizes Two separate crystal oscillators. This results in significantly reduced jitter, improved clock accuracy, and more stable operation, which equates to a faithful reproduction of the original sound.
A Powerful Android Wireless Player
With The HIDIZS AP200 You Can Enjoy Your Hi-Fi Music Anytime, Anywhere. Break The Bondage Of Conventional Wired Connections, And Become Immersed In Wireless Music Heaven.
Bluetooth4.0 And Apt-X
The AP200 supports both Bluetooth 4.0 and the apt-X lossless transmission protocol. This versatility means that the AP200 has the capability to both transmit, as well as receive audio signals over Bluetooth.
Wi-Fi, DLNA And Dropbpx
The AP200 utilizes an IEEE 802.11 b/g/n 2.4GHz WiFi module. This allows users to listen to their favourite online streaming services, or install any online 3rd-party music app, such as streaming through Spotify, Tidal, Pandora, or any other music streaming app, allowing for an immediately upgraded sound experience.
Cortex-A9 Processsor, 1.4GHz With Android System
Other hardware specs and features include a 3.54 inch (960x640, 325 PPI) touch display, 1GB of internal RAM, 32GB/64GB internal storage and expandable up to 256GB with external Micro SD card slot. Additionally, the AP200 utilizes Rockchip’s 28nm RK3188 SoC, which contains 4 Cortex-A9 cores, resulting in an increase of 35% processing speed as compared to the previous generations.It also features Android™ OS 5.1 with Google Play™.
Industry Breakthrough Design
One-piece CNC’d Stainless-steel/Aluminium-alloy Structure Makes It Nothing But A Beautiful Device.
Side Key Controls
Symmetrical buttons makes the AP200 is an easy-to-operate, smart Hi-Fi music player. Single click the up & down buttons for volume adjustment, double click the up & down buttons to skip to the next/previous song.
10 Hours Playtime
Hidizs AP200 lasts 10 hours on a single charge. Enjoy uninterrupted music for as long as you need. Coupled with Japanese precision protection circuit, this makes the 3100mAh lithium battery extra safe and reliable.
32/64-GB Memory Plus Micro SD
Never run out of music with 32/64 GB of integrated memory — you can even add more with a Micro SD memory card slot.
| FULL SPECIFICATIONS |
Size & WeightDimensions (W X H X D)Approx. 2.4" x 4.2" x 0.62" (60.5 x 106.5 x 15.7 mm) WeightStainless steel versions: 208g/ 7.28 ounces Aluminium-alloy versions: 145g/ 5.07ounces |
PowerBattery life - continuous playback musicAbove 10 hours USB power adapterDC 5V/2A recommended Charge time (full charge)4 hours Charge interfaceUSB Type C |
HardwareCPU modelRK 31884 x Cortex-A9 1.4GHz DSDHBC3000 RAM1G ROM32G Aluminium version / 64G Stainless steel version DACES9118C x2 AmplifierTPA6120A2 External storageMicro SD card Maximum storage expansion256G |
ConnectivityWi-Fi2.4GHz IEEE802.11 b/g/n standards supported USB interfaceUSB Type C, two-way USB DAC BluetoothBluetooth V4.0，aptX supported Hiby AppSupports LAN, DropBox, DLNA |
Appearance DesignSystem UIAndroid 5.1/Hiby music Body materialAluminium-alloy/Stainless steel ColorsStainless steel versions: original steel color Display screen3.54 inches 960x640 IPS full-touch screen ButtonsSide buttons for both volume and playback control Rear PanelStainless steel versions: Rosewood/Glass-covered Carbon fiber texture/Pure glass. Aluminium-alloy versions: Pure glass |
USB Audio(DAC)DSD supportDSD 64/128 PCM support384kHz/32Bit |
Output OptionHeadphone output3.5mm headphone jack Headphone with build in microphoneSupport |
Headphone out specifications (3.5mm headphone out jack)Output Power130mW @ 32Ω SNR115dB (20-40kHz A-weighted) Output impedance115dB (20-40kHz A-weighted) Frequency response20-40kHz Channel separation75dB (1 kHz) Drive Ability16-150Ω (Recommended) |
GeneralGain controlLow/High S/Pdif DoPNot Support System rebootHold power button DSD gain compensation0/+1dB/+2dB/+3dB/+4dB/+5dB/+6dB optional Equalizer8 presets + custom preset, up to 48kHz Firmware upgradeSupported via SD card |
Format SupportLossless formatDSD：DSD64/128（".iso", ".dsf", ".dff"） Lossy compressionMP3, AAC, WMA, OGG... |
|
Firmware Download Click here to download the newest firmware for AP200 |
