Portable Mini Hi-Res Music Player

Enjoy High Fidelity Music Wherever You Go.

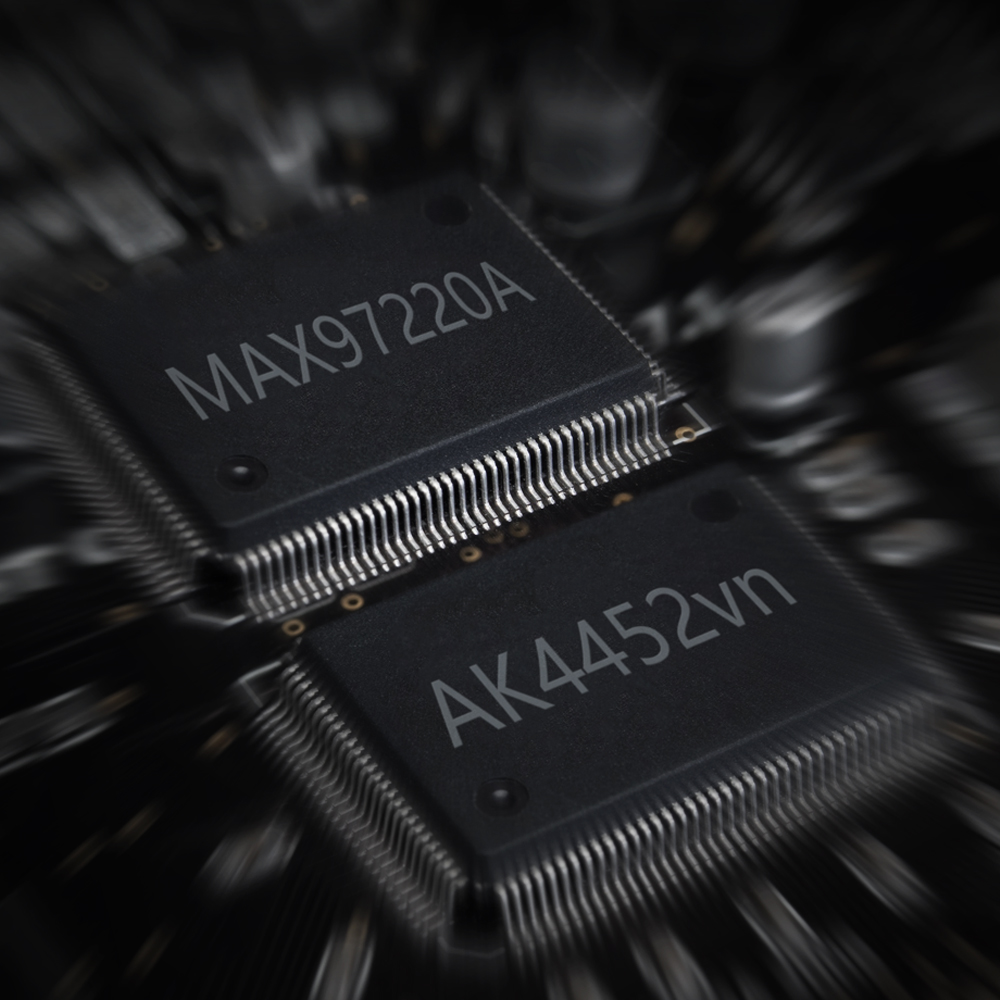

Top DAC & AMP Setup

Utilize professional HiFi chips, AKM AK4452VN DAC chip and MAXIM MAX97220A AMP chip, AP60 II can be perfectly restore the true original sound.

Direct Stream Digital

Support the most of the lossless audio format, PCM up to 192kHz/24Bit, includes decoding DSD 64/128.

Support HibyLink Smart Control

Supported by Hiby Link, AP60 II can be intelligent controlled by smartphone. Free your AP60 II and enjoy your music in a easy and convenient way.

Music On Your Way

Supports Two-way Bluetooth 4.0 And The Aptx Lossless Transmission, Enjoy Hi-Res Music Anytime Anywhere.

Highly Versatile Player

Supports Two-way USB DAC Function For More Fun.

Highly Versatile Player

Supports Two-way USB DAC Function For More Fun.

Support Two-way USB DAC

AP60 II can act as a DAC (external audio decoding and amplification) when connected to a computer or smartphone(supports Windows, Mac, and Android smartphones with OTG-Host functionality), or purely as a digital transport when connected to an external DAC, such as a Chord Mojo, IFI Micro iDSD, or Oppo HA-2SE. Maximum up to 384kHz/32Bit.

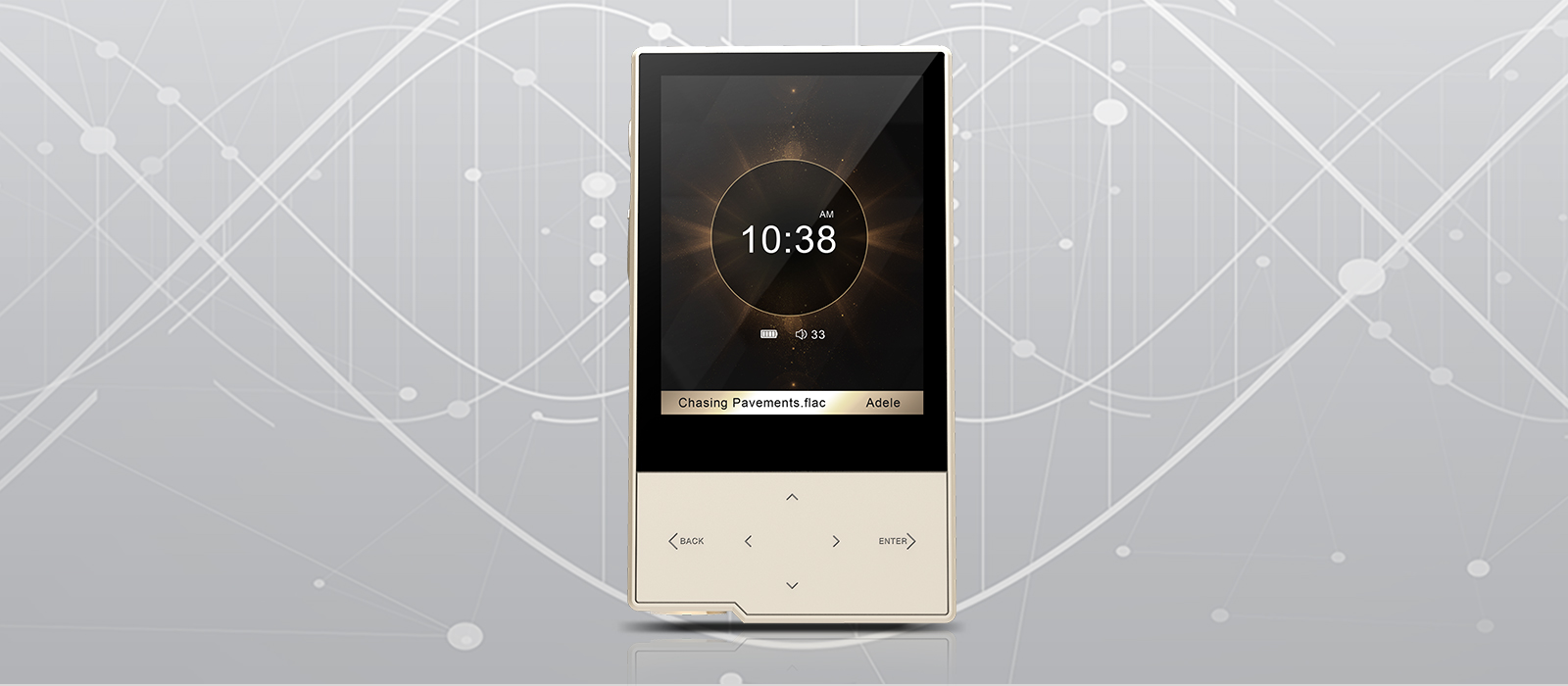

New Clock Display Function

New AP60 II is equiped with 2.0" IPS HD screen with higher visual angle, better contrast. Features 1000mA LiCoO2 battery, 10-12 working hours.

New Clock Display Function

New AP60 II is equiped with 2.0" IPS HD screen with higher visual angle, better contrast. Features 1000mA LiCoO2 battery, 10-12 working hours.

FULL SPECIFICATIONS

Size & Weight

Dimensions (W X H X D)

Approx. 1.65" x 2.95" x 0.55" (42 x 75 x 14 mm)

Weight

95g/ 0.21 ounces

Power

Battery life - continuous playback music

Above 10 hours

Charge time (full charge)

One hour

USB power adapter

DC 5V/2A recommended

Charge interface

Micro USB

Hardware

CPU model

X1000

DAC

AK4452VN

ROM

None

Amplifier

MAX97220A

External storage

Micro SD card

Maximum storage expansion

256G

Connectivity

Bluetooth

Above 10 hours

USB interface

Micro USB, two-way USB DAC

Appearance Design

Body material

Aluminium-alloy

Display screen

2.0 inches 320x240 TFT HD screen

Colors

Black/Silver/Blue/Grey/Gold

Buttons

Side and panel buttons

USB Audio(DAC)

DSD support

DSD 64/128

PCM support

192kHz/24Bit

Headphone out specifications (3.5mm headphone out jack)

Output Power

X1000

DAC

AK4452VN

ROM

None

Amplifier

MAX97220A

External storage

Micro SD card

Maximum storage expansion

256G

Format Support

FLAC, APE, WMA, WAV, ALAC, AAC, OGG, MP3, AIFF, DSF, DIFF
