Hidizs DH80/DH80S Portable Balanced DAC & AMP

Model:

Color:

Quantity

$0.00USD

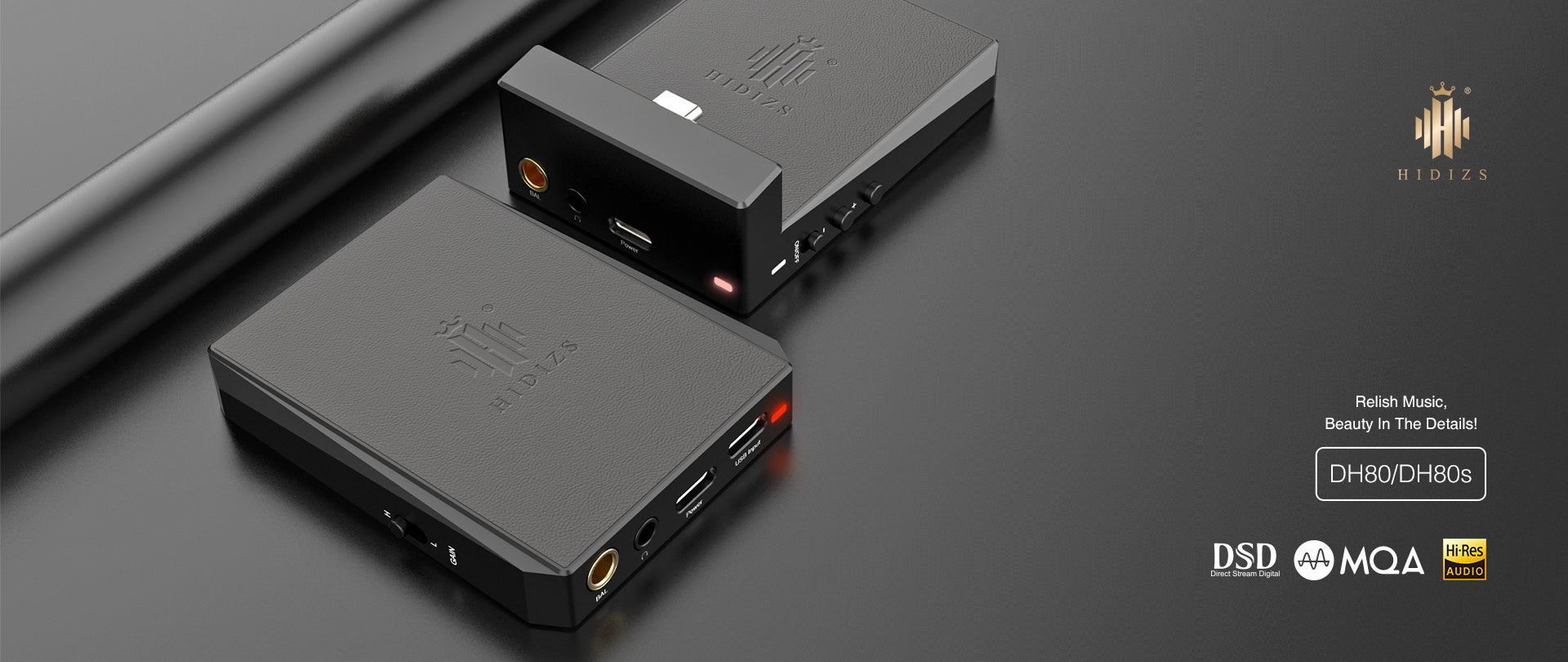

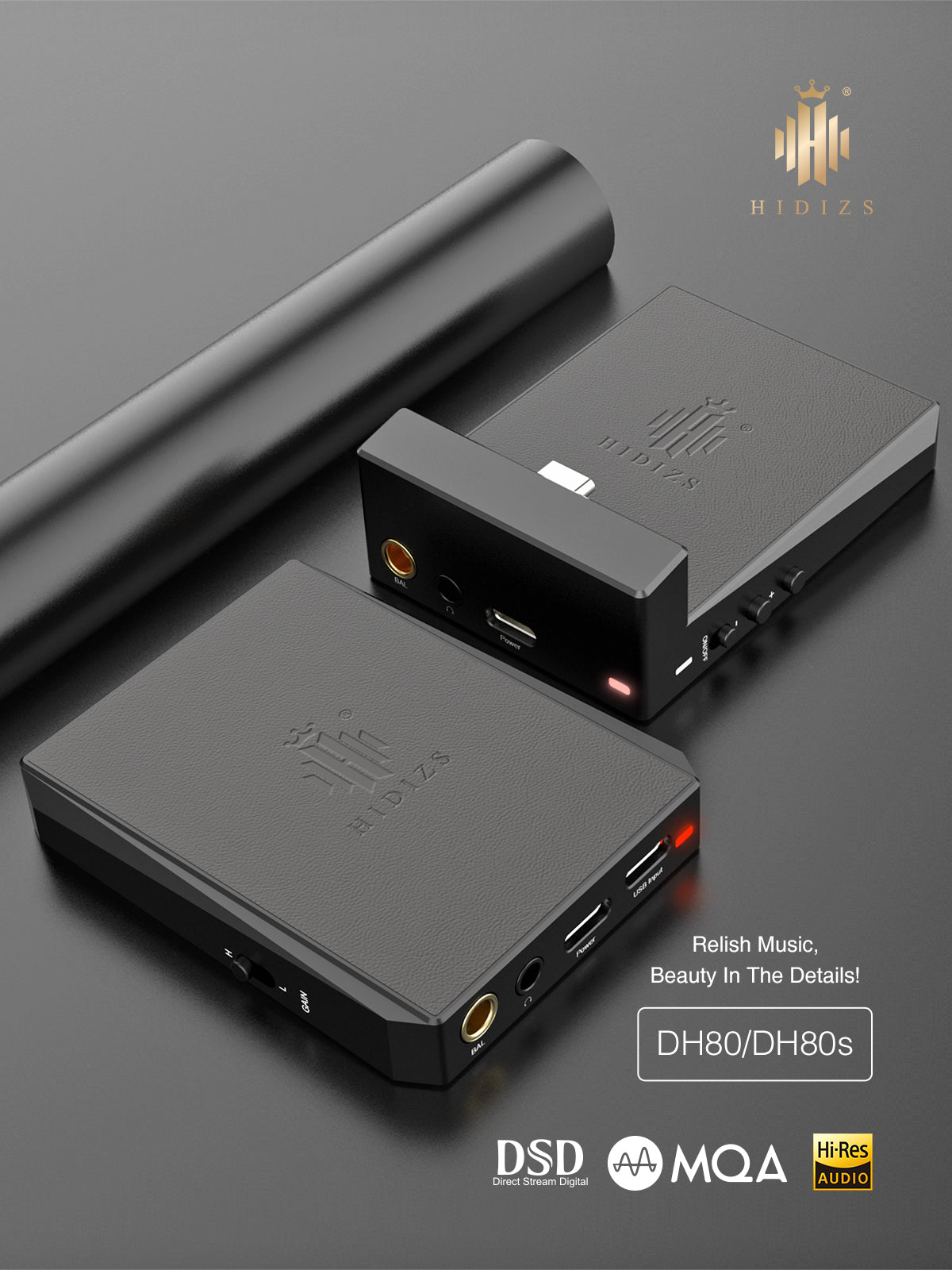

DH80/DH80S Portable Balanced DAC & AMP

DH80 Unique Portable DAC & AMP

DH80 Portable Balanced DAC & AMP: Perfect partner for AP80/AP80Pro with perfect unity.

DH80S Unique Portable DAC & AMP

DH80S Portable Balanced DAC & AMP: Not only made for AP80/AP80 Pro, but also for mobile phone, PC, iPad, wired earphones, desktop speaker, etc.
How to use the DH80S Portable Balanced DAC & AMP, is up to you.

Support MQA Audio Technology

MQA audio technology is supported in Hidizs DH80/DH80S Portable Balanced DAC & AMP, can fully "unfold" the MQA file to deliver outstanding sound.
Music services that support MQA should be installed on playback devices(e.g. HiBy Music, TIDAL) to realize 4X unfolding of MQA audio or even 8X.
*MQA support will be added in HiBy Music App soon.

ESS9281C PRO DAC Chip + Dual Op Amps RT6863C

Hidizs DH80/DH80S Portable Balanced DAC & AMP features an advanced ESS9281C PRO DAC chip with more dynamic range, low power consumption, ultra-low distortion, close to 0 noise and supporting MQA. Internal dual independent op amps RT6863C supports up to 4Vrms for balanced 4.4mm output and up to 2Vrms for single-ended 3.5mm output.

Native DSD64/128

Powerful resolution, keep HiFi anytime anywhere.

3-level Gain Selection & High Output Power

DH80/DH80S Portable Balanced DAC & AMP has three gain settings (High, Medium, Low) for high compatibility with all sorts of HiFi headphones.
Balanced 4.4@32Ω outputs up to 210mW+210mW to power 150Ω over-ear headphones easily.
With the professionally precise 30-level volume knob,every nuance, every subtlety and every tiny drop of emotion, you’ll feel it.

Advanced Configuration Improves Sound Quality

With Panasonic capacitor+Dual Crystal Oscillators+Dual Op Amps RT6863C, DH80/DH80S Portable Balanced DAC & AMP achieves more dynamics and more pleasant separation. A built-in 1300mAh independent battery delivers more natural and cleaner sound without the drain on your smartphone.

Unrivalled Sound with a Minimalistic Design

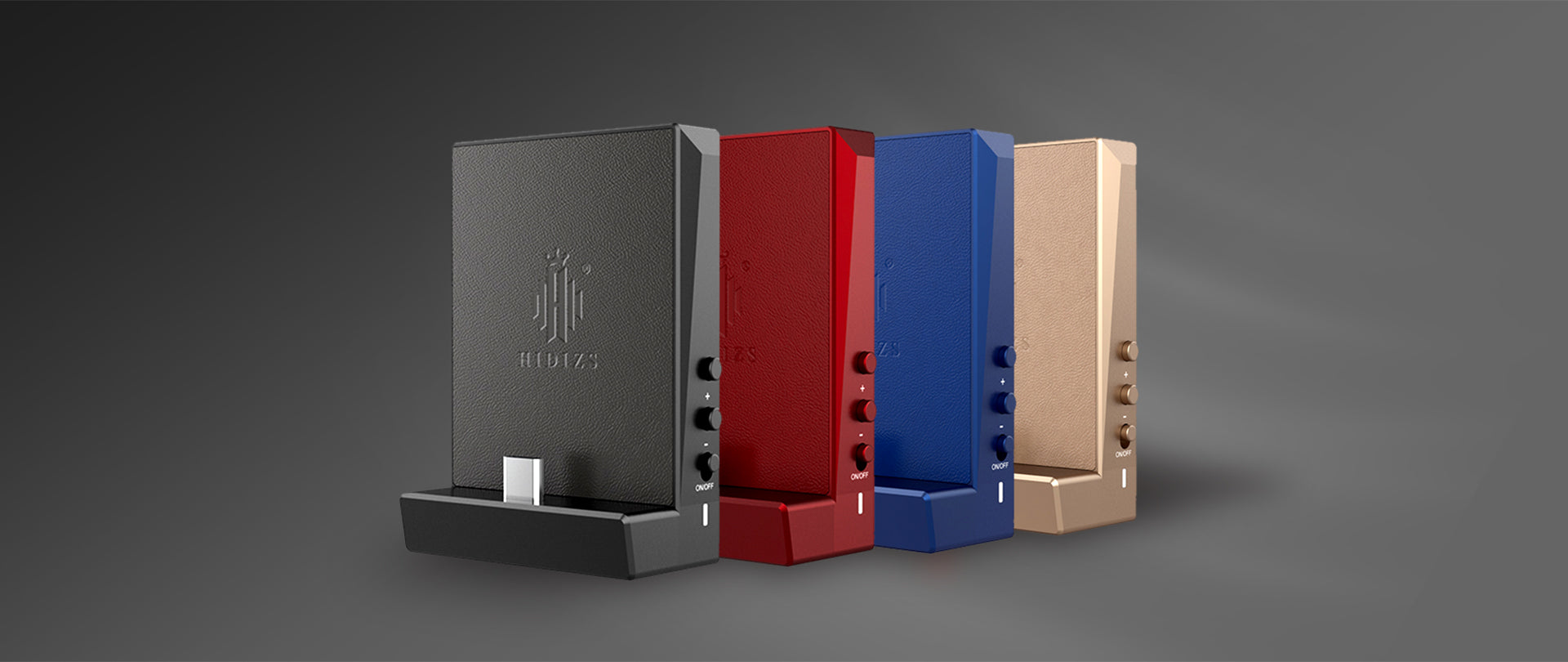

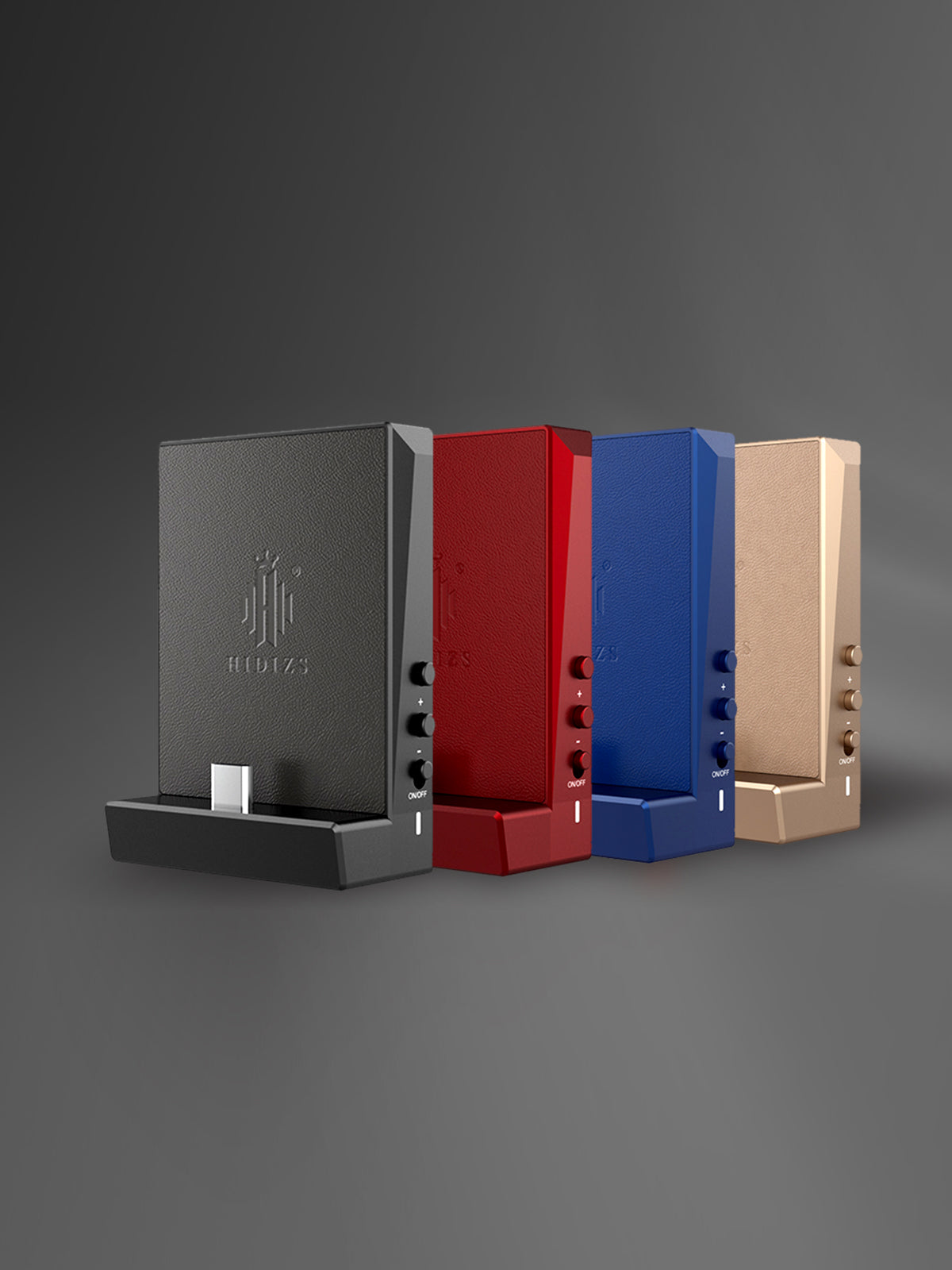

Still the exquisite CNC aluminum alloy craftsmanship with a robust and stylish design. Available in black, red, blue as well as champagne.

Your Music is Glowing - Sampling Rate Indicator Light

LED indicator lights up in different colors, synchronized with the sampling rate of the currently played track.
Red: 44.1k-48k / Blue: 88.2k-384k / Pink: MQA

Magnetic Adsorption Design

Thanks to a high-quality magnet inside, the powerful magnetic adsorption makes DH80/DH80S and AP80/AP80 Pro seamlessly connect and securely fix, with excellent unity. The connection ports are under good protection as well.
*Coming with an adhesive metal plate.

Multiple Platforms USB DAC Input

USB DAC compatible with Windows 10, Mac OS, iPad OS, Android, iOS.
*For iOS users, the Lightning OTG cable has to be purchased separately.

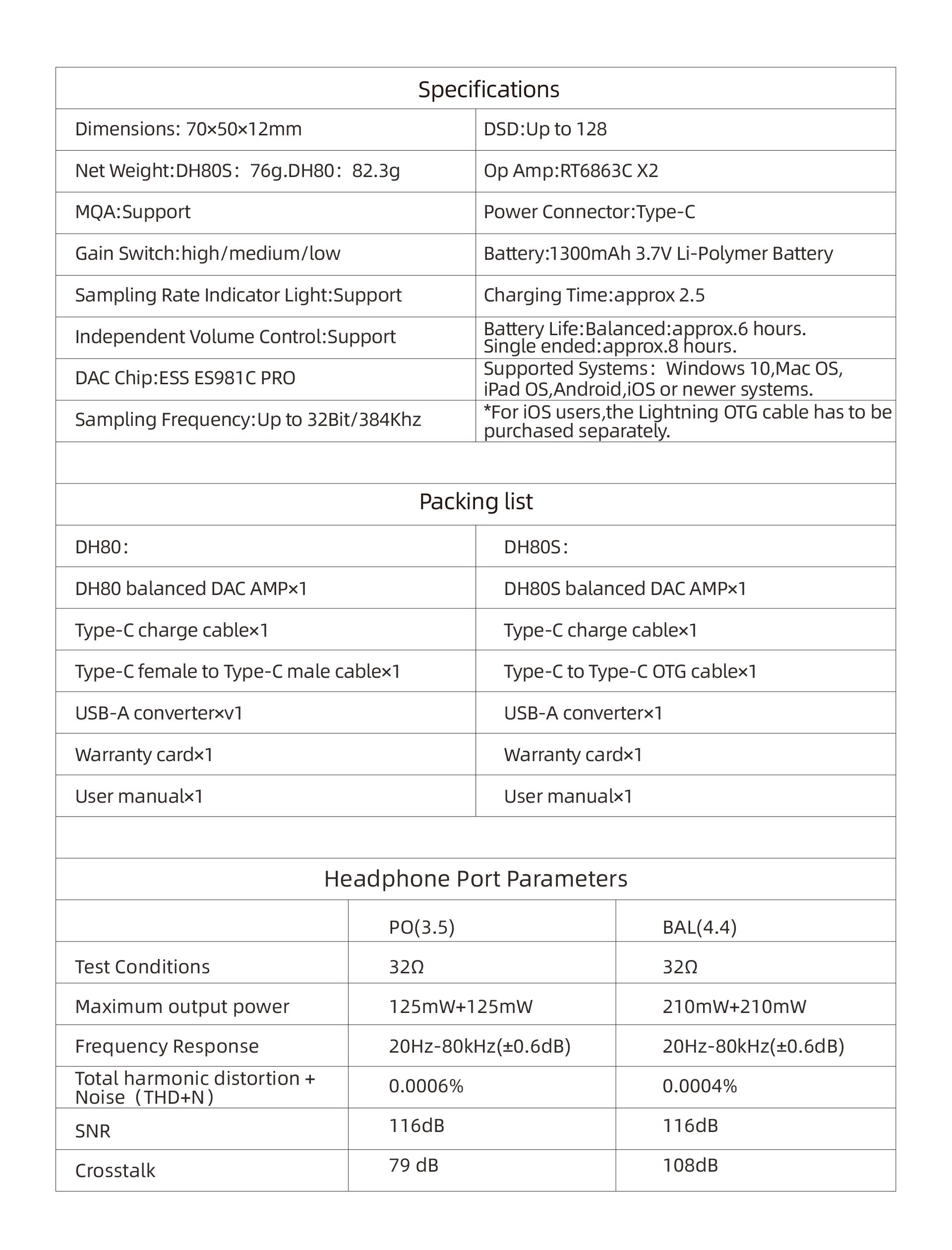

MAJOR SPECIFICATIONS

Dimensions	70×50×12mm
Net Weight	DH80: 82.3g / DH80S: 76g
MQA	Support
Gain Switch	High / Medium / Low
Sampling Rate Indicator Light	Support
Independent Volume Control	Support
DAC Chip	ESS ES9281C PRO
Sampling Frequency	Up to 32Bit/384Khz
DSD	Up to 128
Op Amp	RT6863C ×2
Power Connector	Type-C
Battery	1300mAh 3.7V Li-Polymer Battery
Charging Time	About 2.5 hours
Battery Life	Balanced: about 6 hours / Single ended: about 8 hours
Supported Systems	Windows 10, Mac OS, iPad OS, Android, iOS or newer systems (For iOS users, the Lightning OTG cable has to be purchased separately)

Earphones Port Parameters

	PO(3.5)	BAL(4.4)
Test Conditions	@32Ω Load	@32Ω Load
Maximum Output Power	125mW+125mW	210mW+210mW
Frequency Response	20Hz-80kHz (±0.6dB)	20Hz-80kHz (±0.6dB)
Total harmonic distortion + Noise (THD+N)	0.0006%	0.0004%
SNR	116dB	116dB
Crosstalk	79dB	108dB

What’s in the Box

DH80:	DH80 Balanced DAC AMP×1	DH80S:	DH80S Balanced DAC AMP×1
	Type-C charge cable×1		Type-C charge cable×1
	USB-A converter×1		USB-A converter×1
	Type-C female to Type-C male cable×1		Type-C to Type-C OTG cable×1
	Warranty card×1		Warranty card×1
	User manual×1		User manual×1
