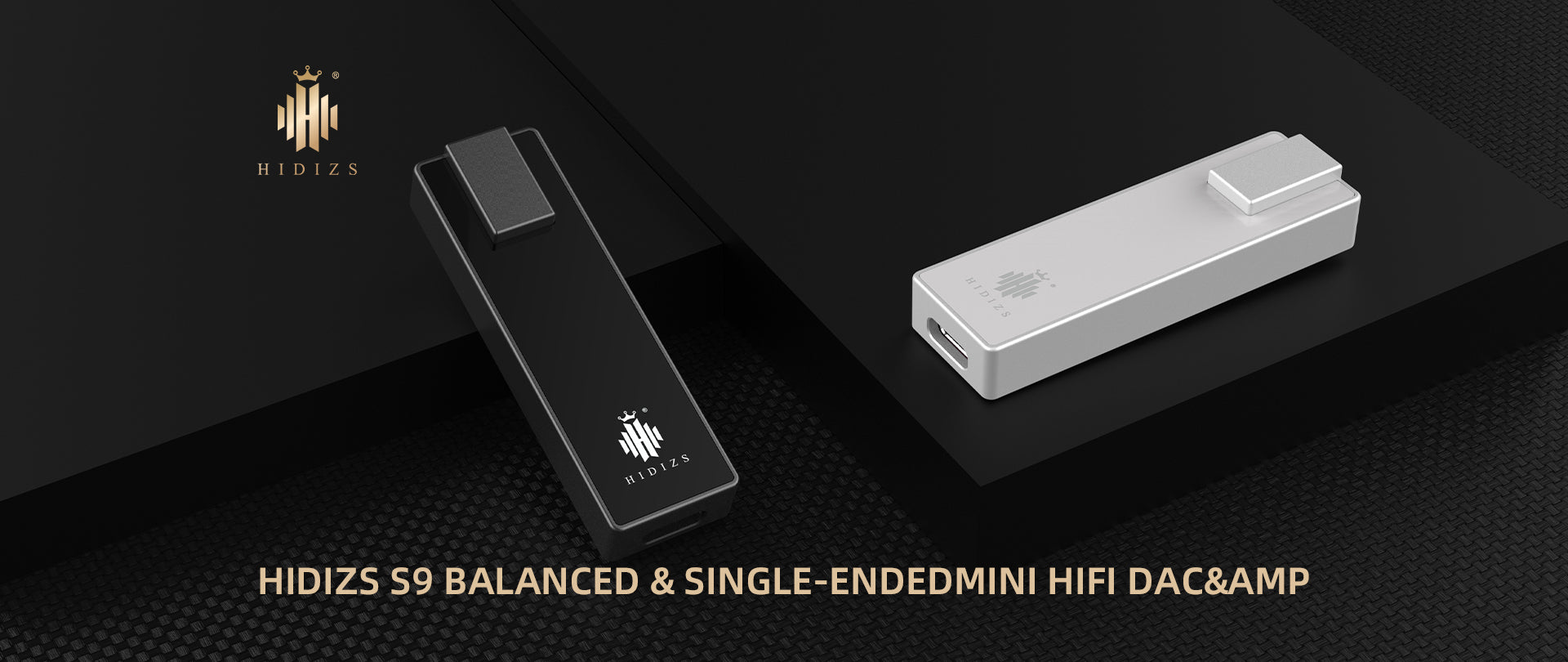

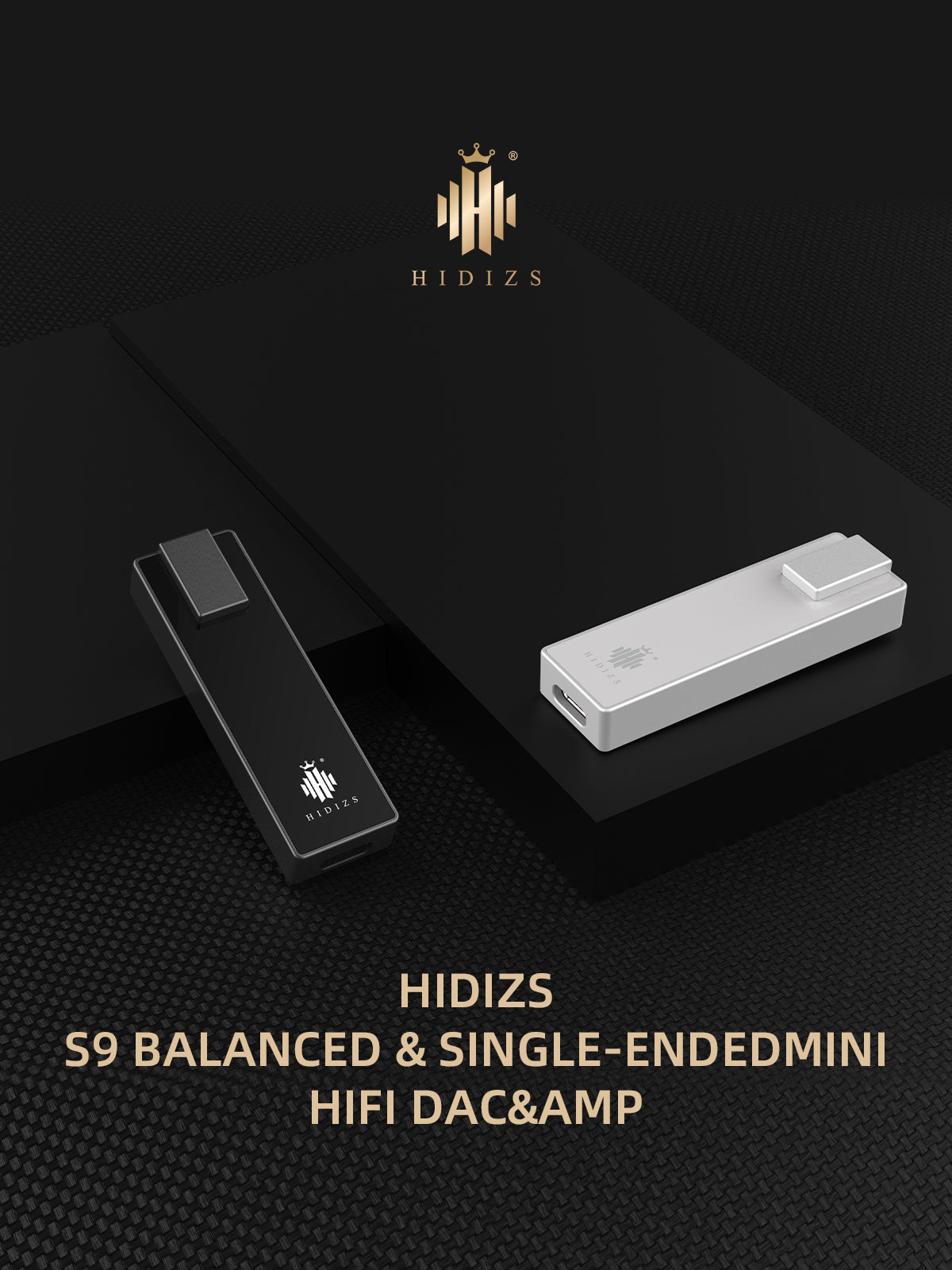

Hidizs S9 Balanced & Single-ended Mini HiFi DAC & AMP
Hidizs | Enjoy Music Like Never Before
S9 purchased in advance will be shipped one after another, please wait patiently.
The plug marked with Hidizs logo is used to connect to smartphones, computers or other audio sources. The other plug with no Hidizs logo needs to be connected to the S9.
Related products

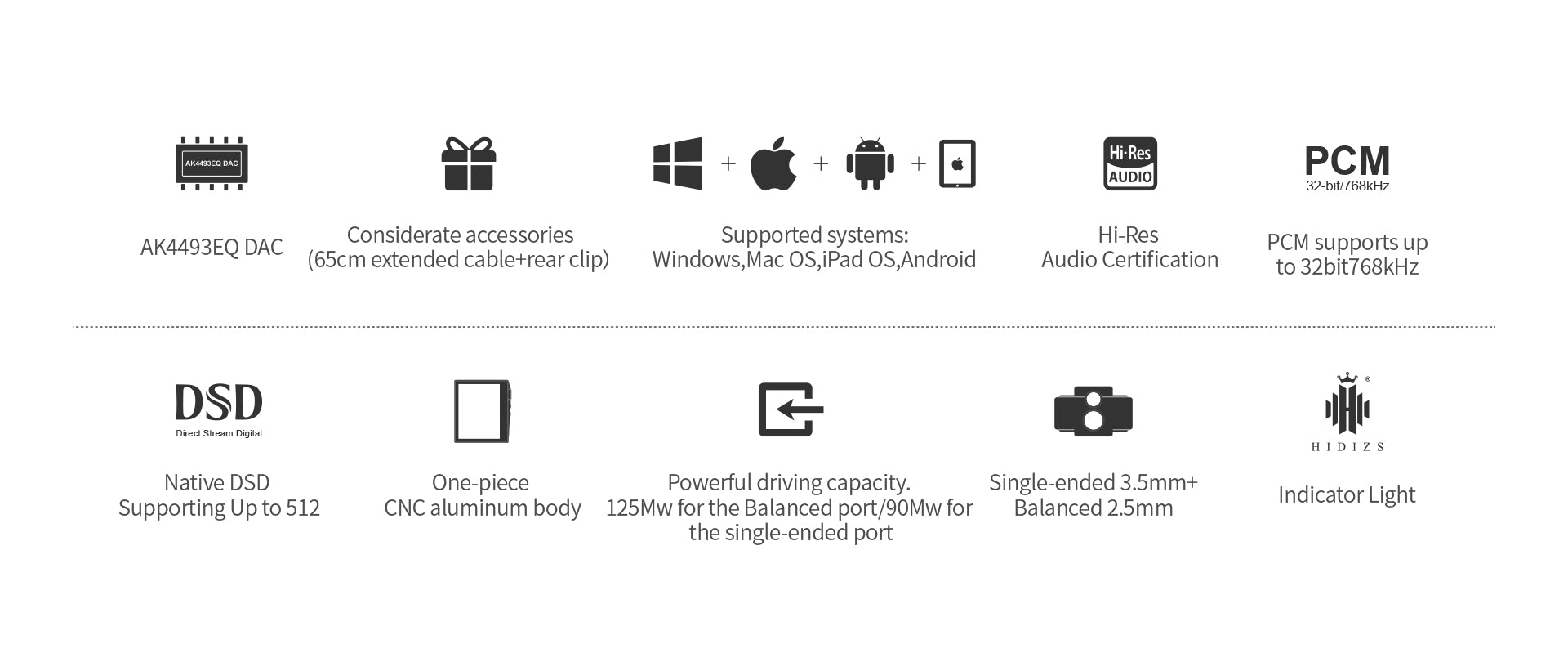

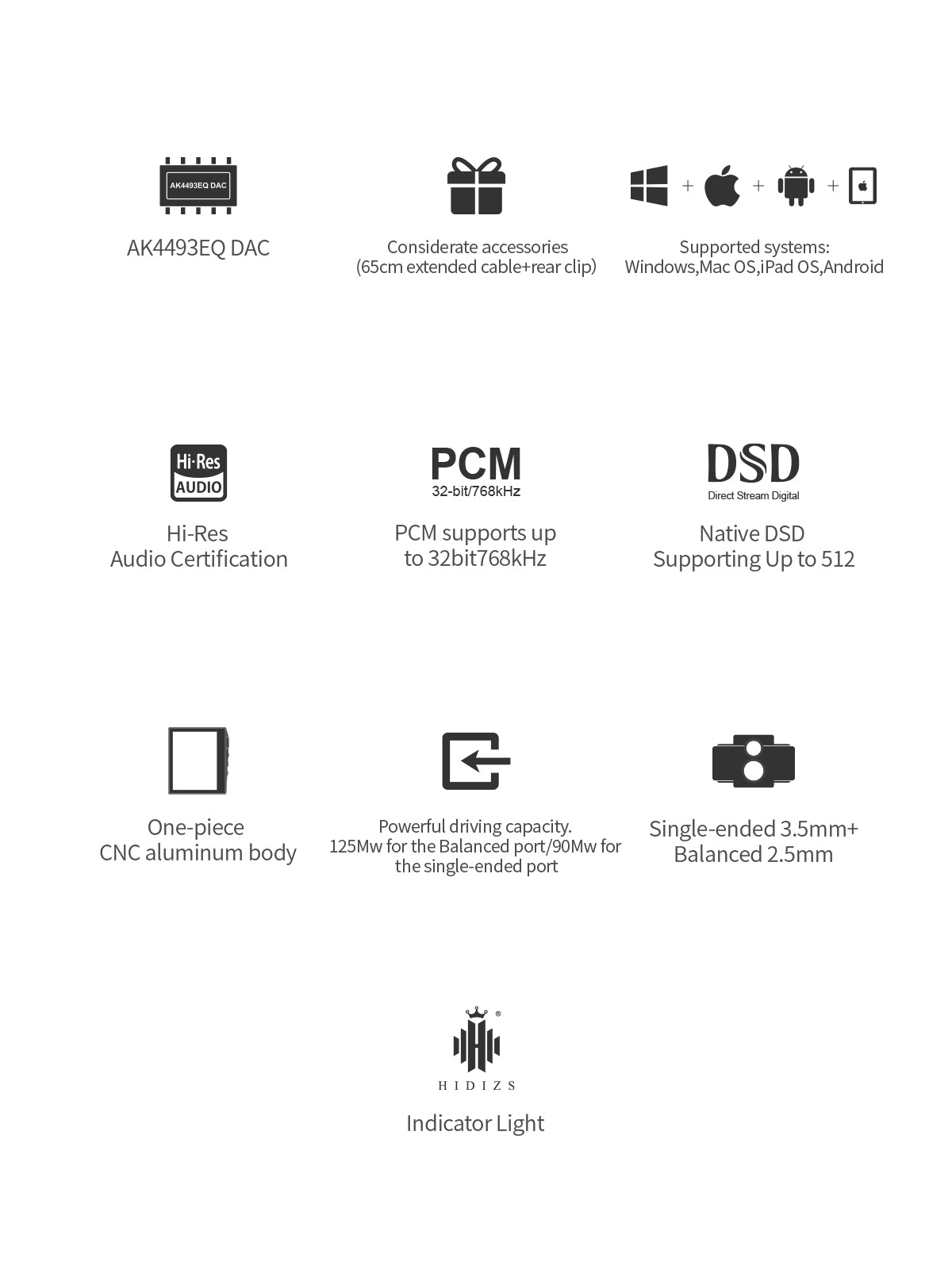

Extraordinary HiFi Experience From Exceptional DAC

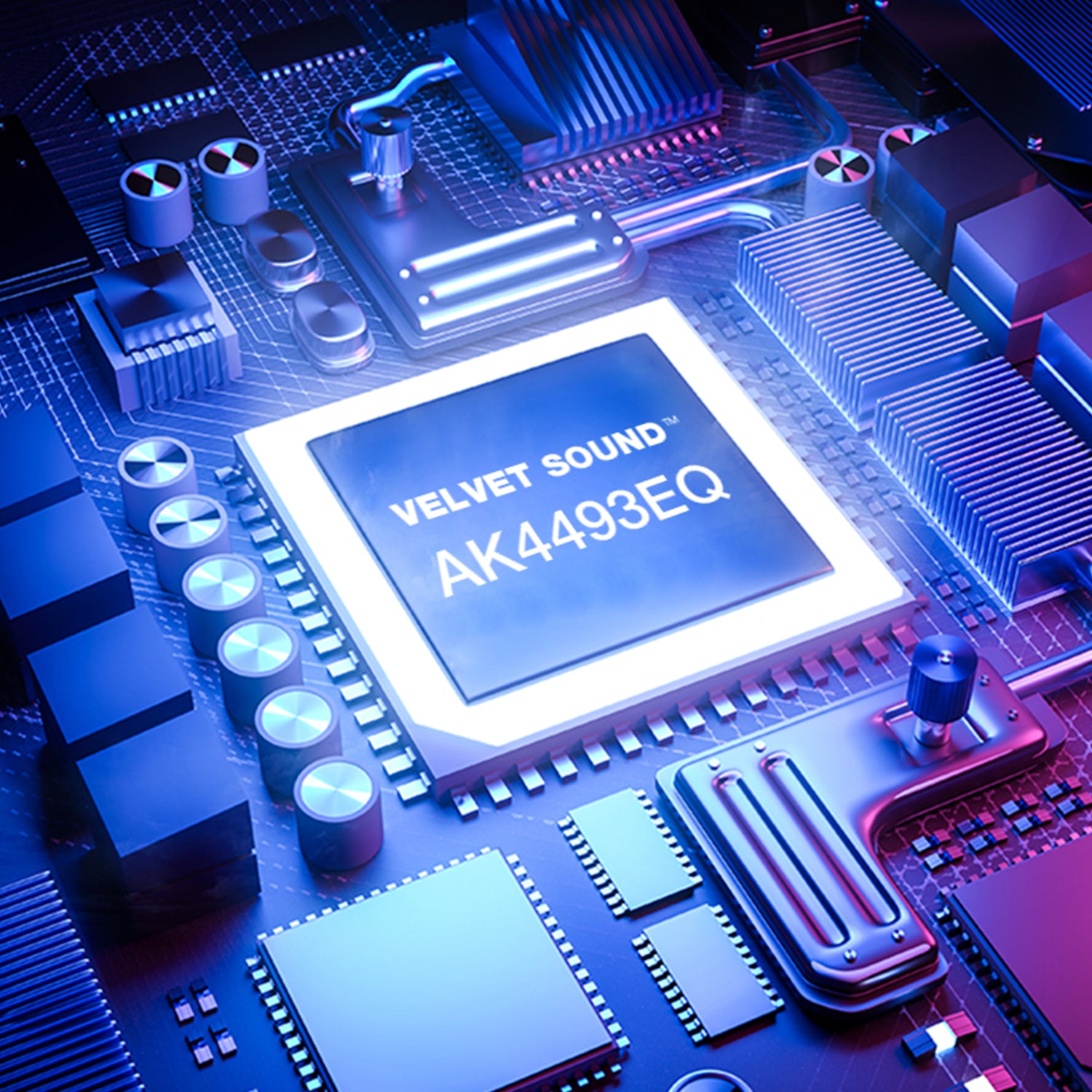

Equipped with the AK4493EQ DAC, a new generation Premium 32-bit 2ch DAC with VELVET SOUNDTM technology, with-113dB THD+N and 123dB wide dynamic range, will bring you an extraordinary aggressive audio experience.

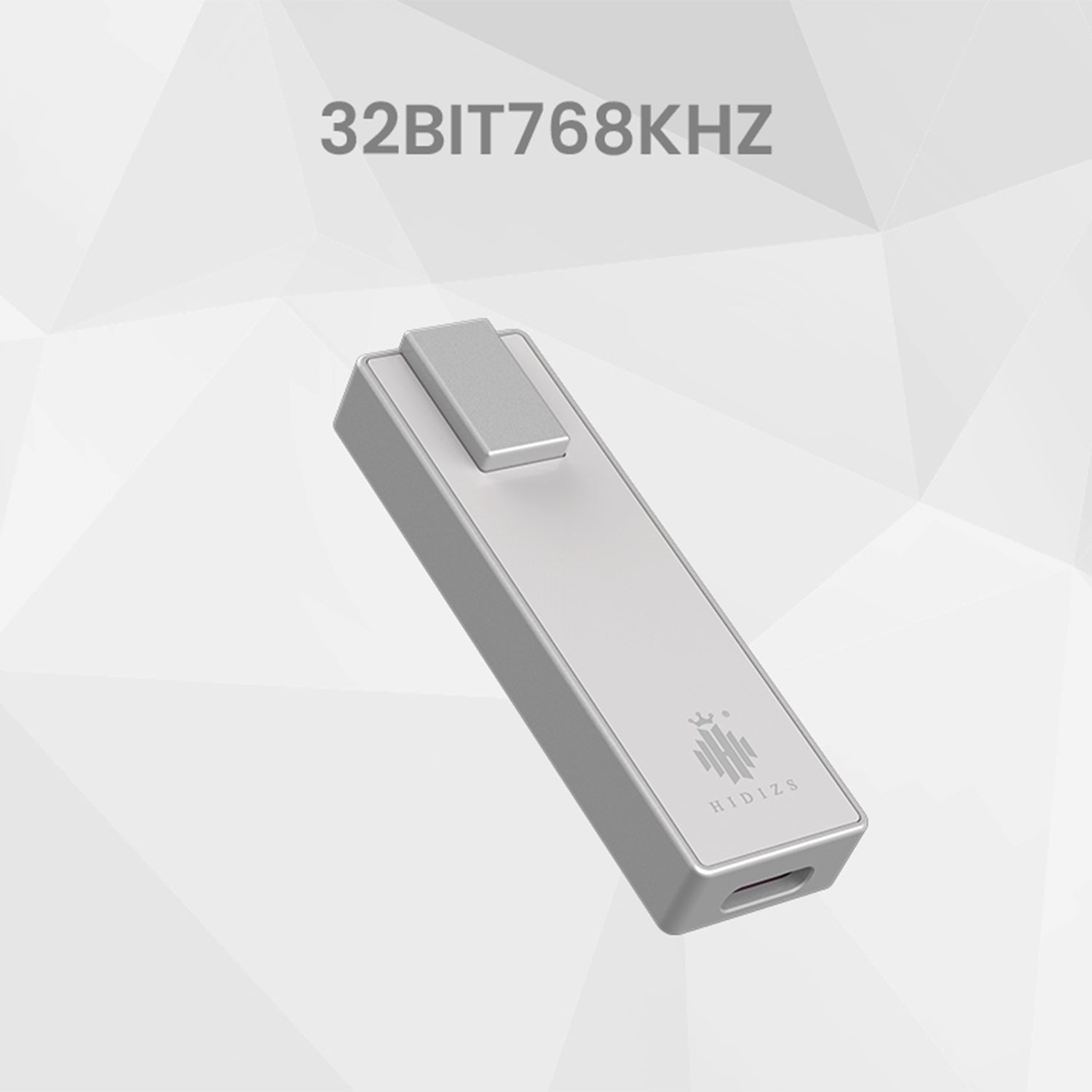

PCM Supports Up to 32bit768kHz
Supporting up to 768kHz PCM, ideal for a high-resolution audio source playback. Carry your S9 and experience how it works its charm in your everyday life.
Native DSD Supporting Up to 512

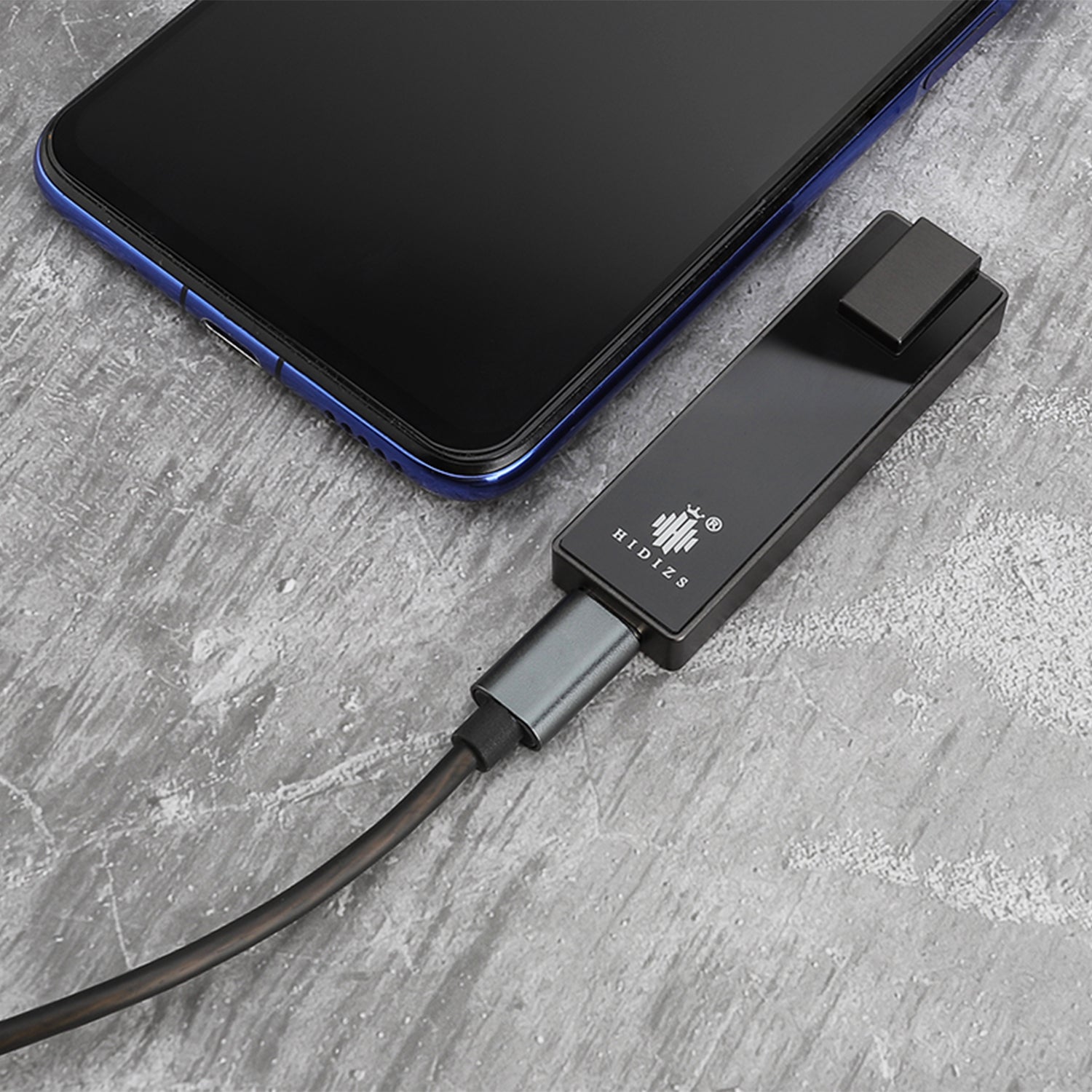

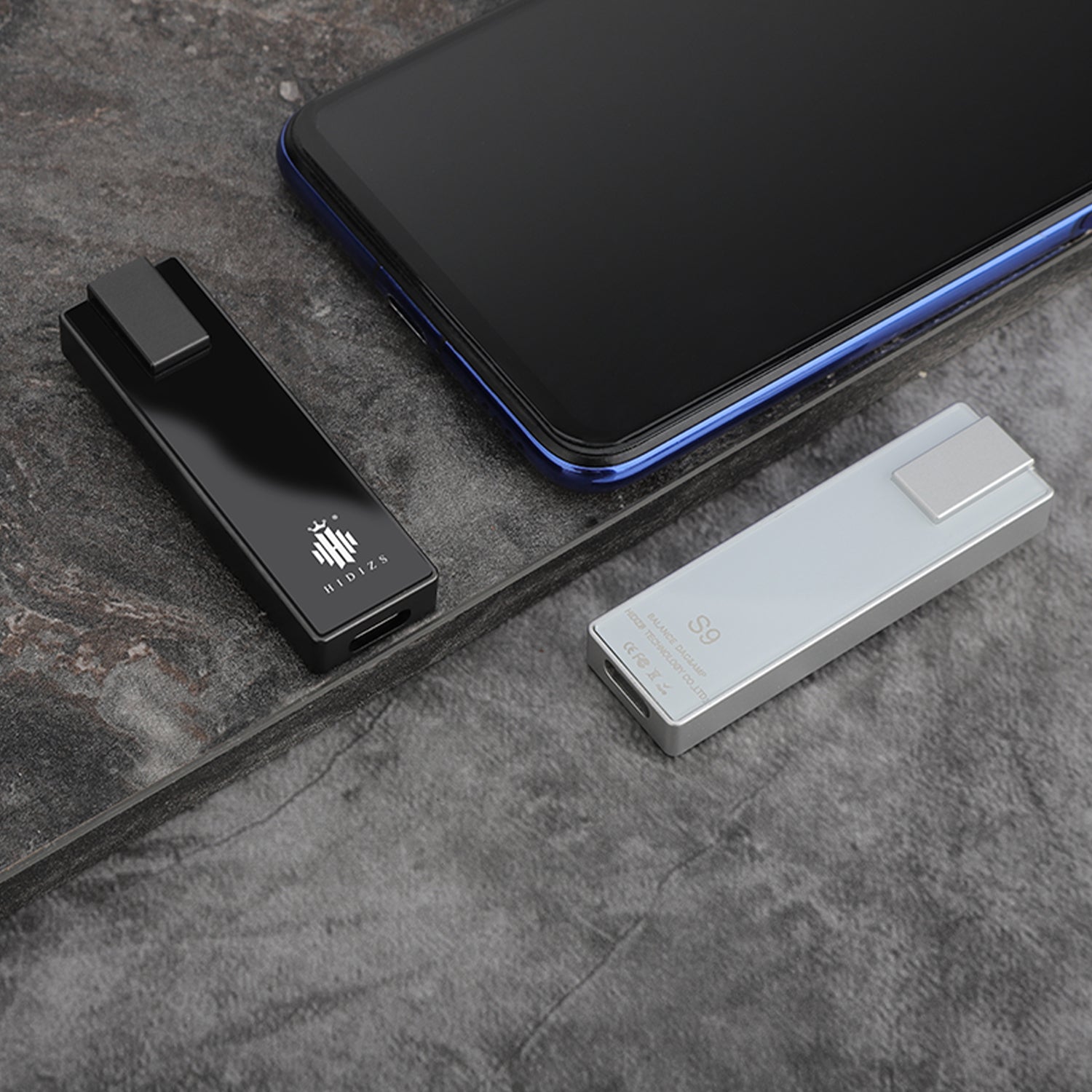

Make Your Mobile Phone A HiFi Music Player
The successful application of Native DSD512, often used in high-end music players, not only means resolution upgrade and richer details, but also means that mobile phones has taken a huge step towards professional HiFi devices.

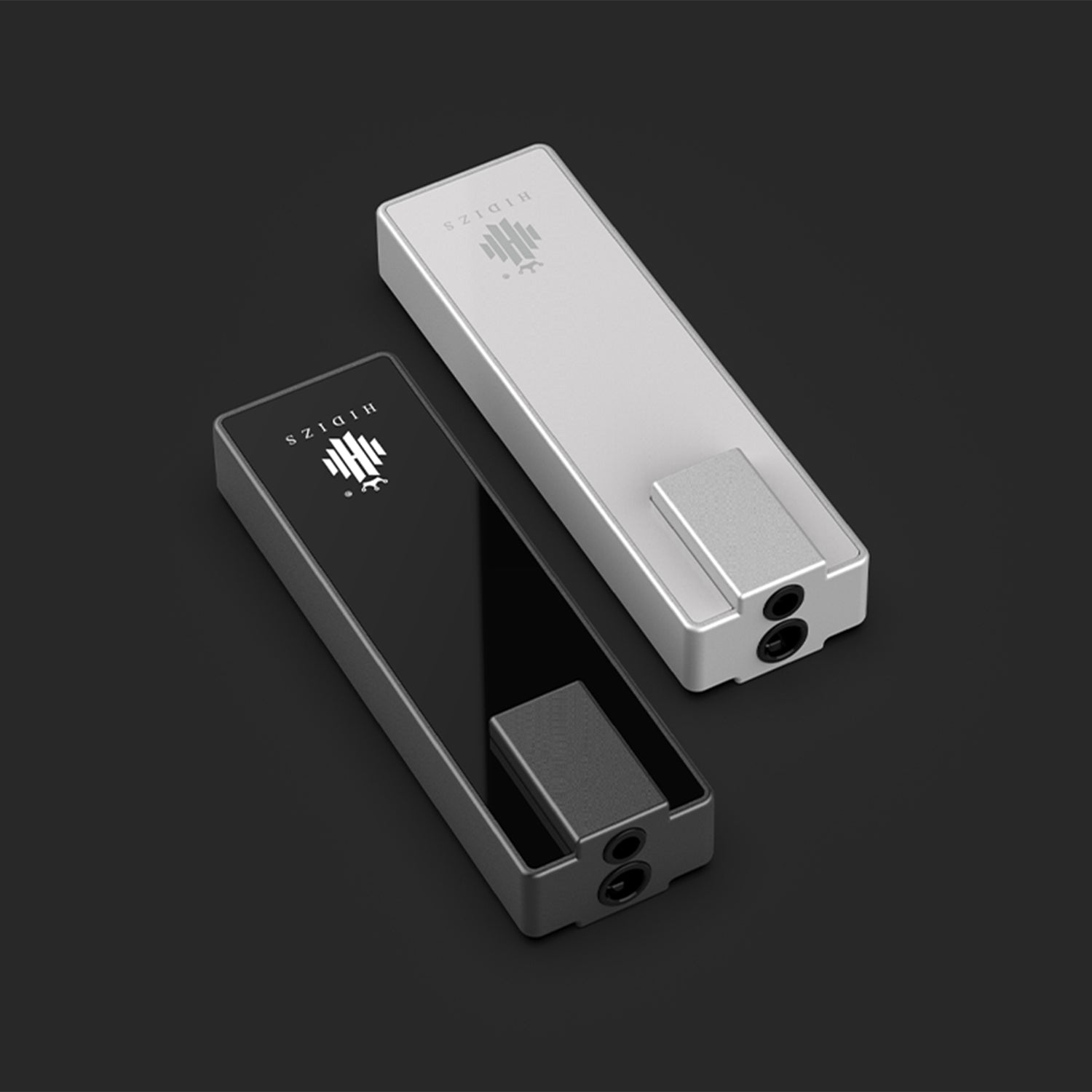

Both 3.5mm and Balanced 2.5mm Are Contained in Such a Small Size
S9, close to AA battery size, but with greater power, detailed resolution, more functional and user friendly thanks to the both balanced and Single-ended outputs, can even powerfully drive all full-size headphones.
Considerate Accessories for You
More accessories, more convenience. A 65cm extended cable and a clear detachable back clip are added in the package.

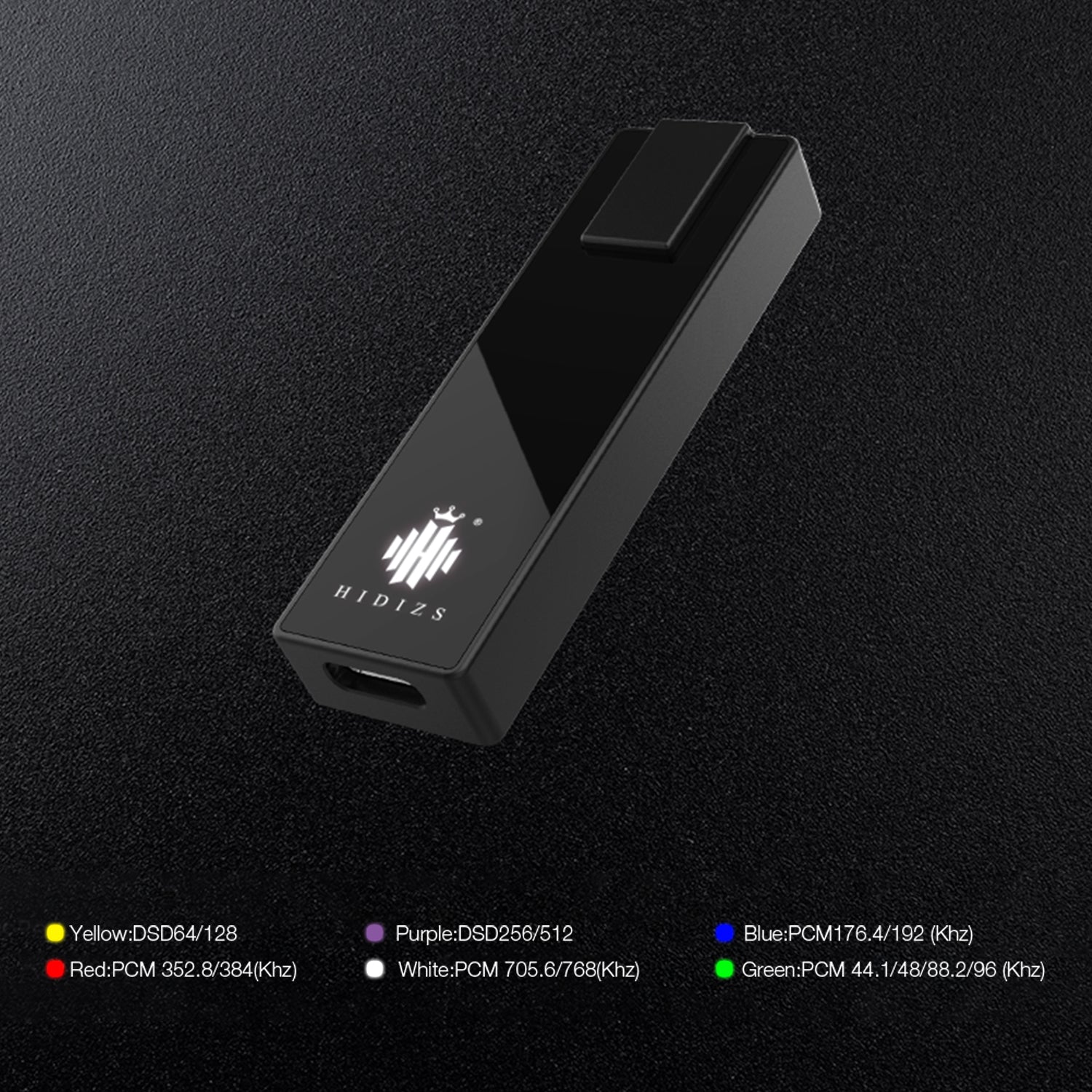

LED Indicator Light
According to different sample rates, the S9 will flash different lights, which is interesting and convenient.
Drive All You Want To Drive
125Mw for the Balanced port/90Mw for the Single-ended port. What a powerful driving capacity in this little guy. Come on! Make it your music companion.
Not only Powerful, but also worth collecting

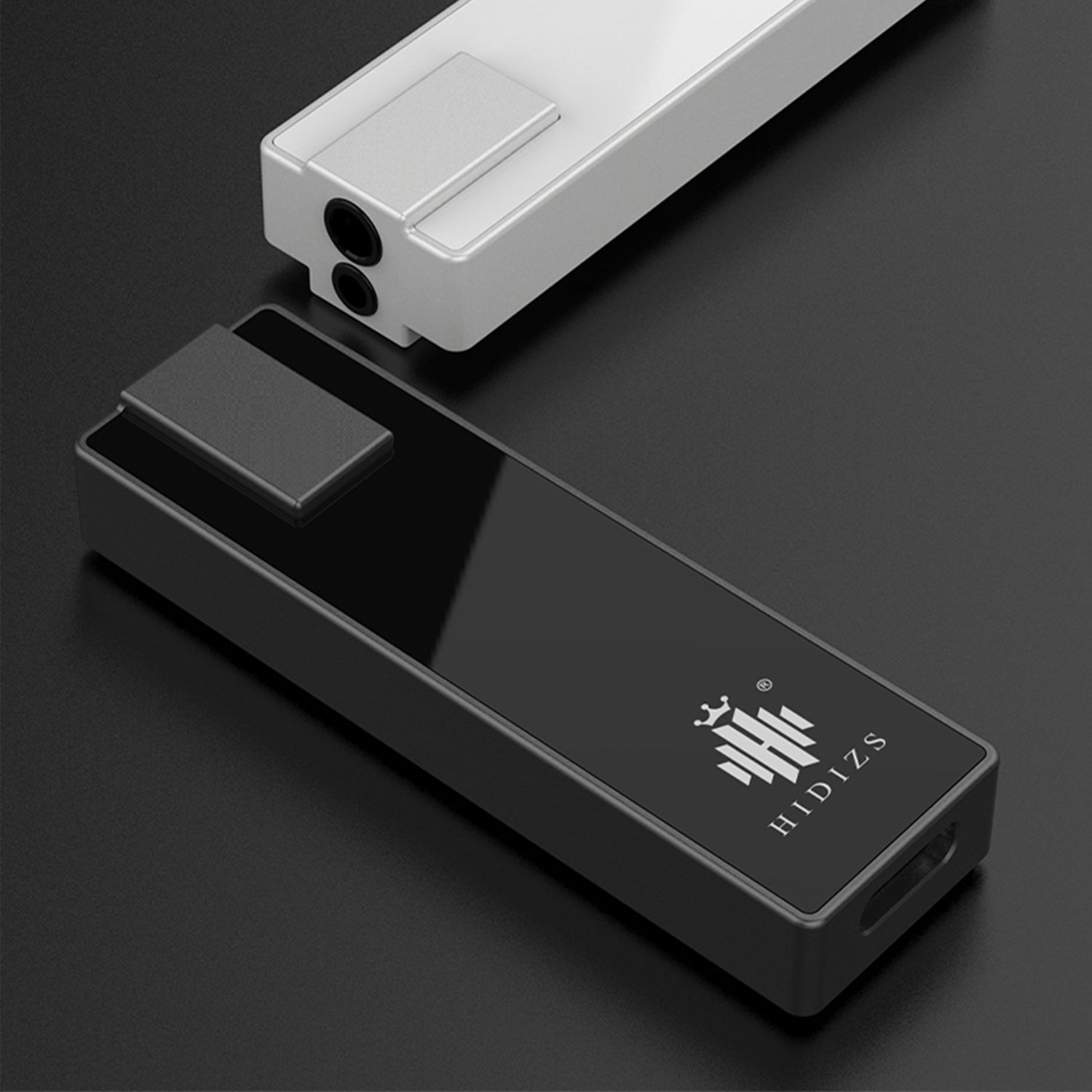

Products manufactured by CNC integrated molding technology can be called works of art due to the difficulty and high time costs, showing the fine workmanship, stable structure and pleasing appearance which is incomparable to welded or split products.
Hi-Res (High Resolution Audio)
The S9 is certified by the Hi-Res Audio, which is a standard for high-quality audio products formulated by JAS and CEA, already recognized and supported by numerous fanciers.

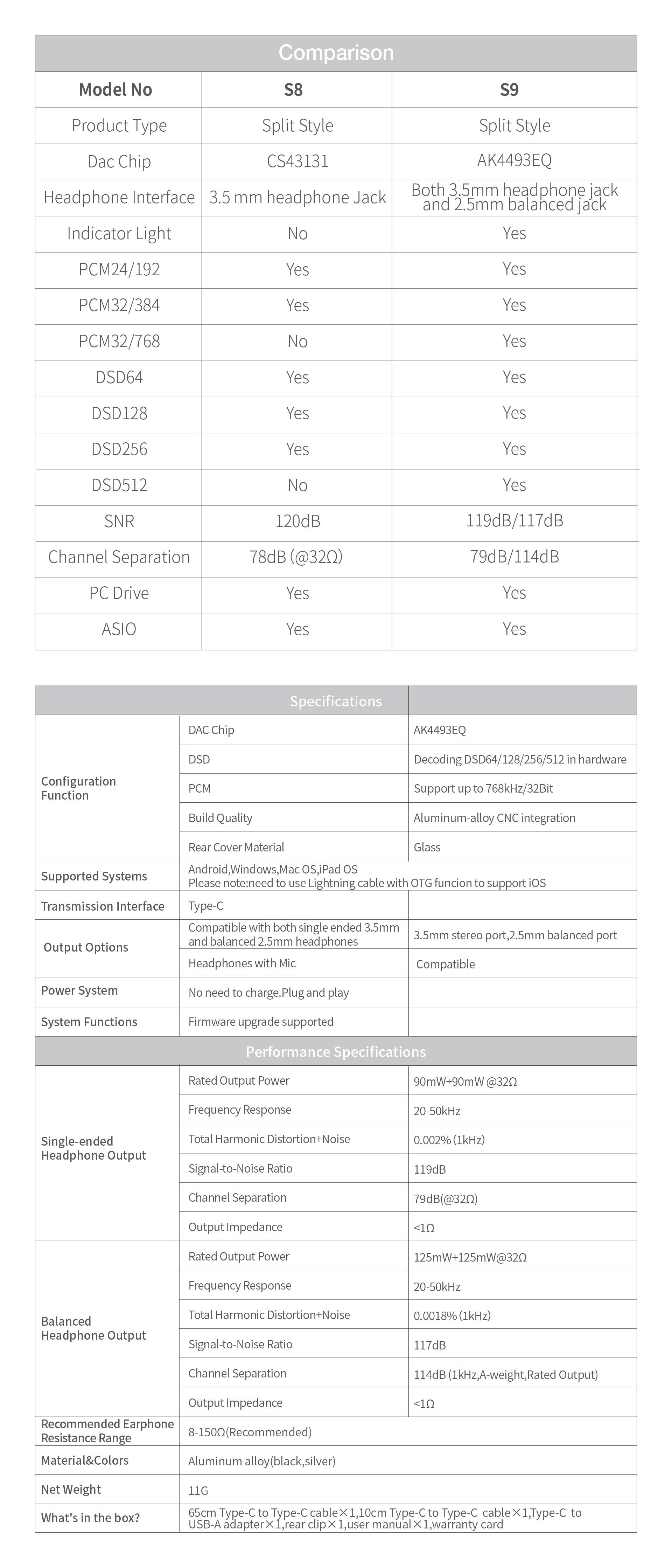

COMPARISON
| Model No. | S8 | S9 |
|---|---|---|
| Product Type | Split Style | Split Style |
| Dac Chip | CS43131 | AK4493 |
| Headphone Interface | 3.5mm headphone jack | Both 3.5mm headphone jack and 2.5mm balanced jack |
| Indicator Light | No | Yes |
| PCM24/192 | Yes | Yes |
| PCM32/384 | Yes | Yes |
| PCM32/768 | No | Yes |
| DSD64 | Yes | Yes |
| DSD128 | Yes | Yes |
| DSD256 | Yes | Yes |
| DSD512 | No | Yes |
| SNR | 120dB | 119dB/117dB |
| Channel Separation | 78dB (@32Ω) | 79dB/114dB |
| PC Drive | Yes | Yes |
| ASIO | Yes | Yes |
Specifications
| Configuration Function | DAC Chip | AK4493EQ |
|---|---|---|
| DSD | Decoding DSD64/128/256/512 in hardware | |
| PCM | Support up to 768kHz/32Bit | |
| Build Quality | Aluminum-alloy CNC integration | |
| Rear Cover Material | Glass | |
| Supported Systems | Android, Windows, Mac OS, iPad OS Please note: need to use Lightning cable with OTG funcion to support iOS | |
| Transmission Interface | Type-C | |
| Output Options | Compatible with both single ended 3.5mm and balanced 2.5mm headphones | 3.5mm stereo port, 2.5mm balanced port |
| Headphones with Mic | Compatible | |
| Power System | No need to charge. Plug and play | |
| System Functions | Firmware upgrade supported |
Performance Specifications
| Single-ended
Headphone Output | Rated Output Power | 90mW+90mW @32Ω |
|---|---|---|
| Frequency Response | 20-50kHz | |
| Total Harmonic Distortion+Noise | 0.002% (1kHz) | |
| Signal-to-Noise Ratio | 119dB | |
| Channel Separation | 79dB (@32Ω) | |
| Output Impedance | <1Ω | |
| Balanced
Headphone Output | Rated Output Power | 125mW+125mW @32Ω |
| Frequency Response | 20-50kHz | |
| Total Harmonic Distortion+Noise | 0.0018% (1kHz) | |
| Signal-to-Noise Ratio | 117dB | |
| Channel Separation | 114dB (1kHz, A-weight, Rated Output) | |
| Output Impedance | <1Ω | |
| Recommended Earphone Resistance Range | 8-150Ω (Recommended) | |
| Material & Colors | Aluminum alloy | Black, Silver |
| Net Weight | 11G | |
| What's in the box? | S9 × 1 65cm Type-C to Type-C Cable × 1 10cm Type-C to Type-C Cable × 1 Type-C to USB-A Adapter × 1 Rear Clip × 1 User Manual × 1 Warranty Card × 1 |
